Gallery
Each of these is built by the docs build from the source beside it.
A phone screen
{
"phone": {
"name": "Today",
"children": [
{
"row": [
{
"draw": [
{"path": "M20 2v14", "stroke": "@ink", "weight": 2},
{
"circle": [20, 30, 14],
"fill": {"linear": ["@saffron", "@rose"], "angle": 160}
}
],
"size": [40, 46],
"name": "Mark"
},
{
"column": [
{"title": "Raag"},
{"deva": "आज का रियाज़", "color": "@mute"}
]
},
{"space": "fill"},
{"icon": "lucide:settings-2", "size": 22}
],
"gap": 12,
"align": "center",
"width": "fill"
},
{
"stack": [
{
"draw": [
{
"circle": [150, 150, 144],
"fill": {"radial": ["#FFFFFF00", "@rose/10%"]},
"stroke": "none"
},
{
"circle": [150, 150, 120],
"stroke": "#1A142333",
"dash": [2, 6]
},
{
"arc": [150, 150, 120, 270, 315],
"stroke": {"linear": ["@saffron", "@rose"], "angle": 45},
"weight": 14
}
],
"size": 300
},
{
"ring": [
{
"each": ["रात", "सुबह", "दोपहर", "शाम"],
"do": {"deva": "{.}", "color": "@mute"}
}
],
"r": 86
},
{
"column": [
{"deva-xl": "यमन"},
{"small": "Yaman's hour", "color": "@mute"}
],
"align": "center"
}
],
"width": "fill"
},
{
"type": "paragraph",
"width": "fill",
"runs": [
"It's evening, so Yaman. Every note is shuddha except ",
{"swara": {"note": "तीव्र म", "tone": "@rose"}},
": sing it a touch sharp, and land on ",
{"swara": "नि"},
" and ",
{"swara": "ग"},
" more than on ",
{"swara": {"note": "सा", "tone": "@mute"}},
"."
]
},
{
"row": [
{"sticker": {"label": "12 दिन लगातार", "turn": -4}},
{
"sticker": {
"label": "Tanpura in C♯",
"tone": "#E3E7FA",
"turn": 3
}
},
{"sticker": {"label": "40 min", "tone": "#F9D7DD", "turn": -2}}
],
"gap": 10,
"align": "center"
}
]
}
}
Raag's Today screen. With the kit sent once, the screen itself is about 900 tokens.
A component library
{
"name": "Library",
"gap": 20,
"align": "start",
"row": [
{"Raga/Card": {"State": "Learning"}},
{
"Raga/Card": {
"State": "New",
"Name": "राग भीमपलासी",
"Hour": "AFTERNOON"
}
},
{
"Raga/Card": {
"State": "Locked",
"Name": "राग मालकौंस",
"Hour": "LATE NIGHT"
}
}
]
}

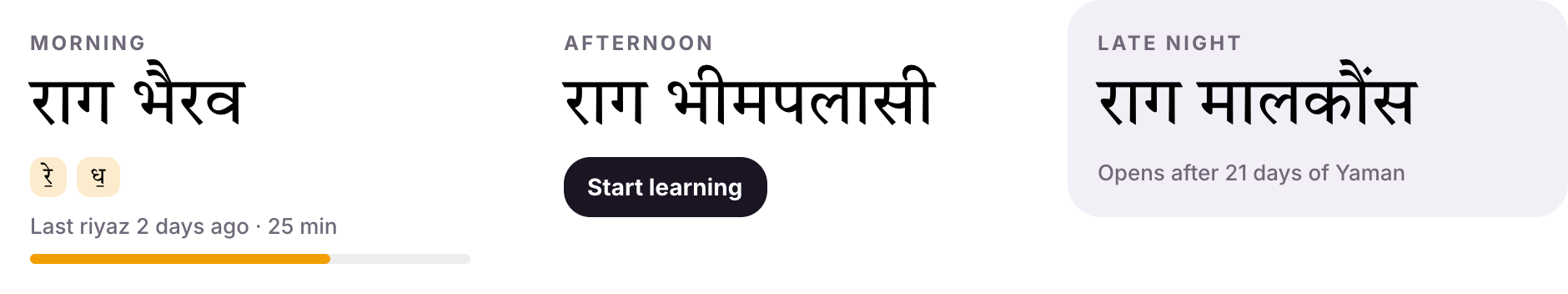

Three instances of a set whose states, properties and behavior come from one build.
Metrics
{
"kit": {
"font": "Inter 14/20",
"colors": {
"ink": "#14161B",
"muted": "#5B606B",
"line": "#E3E5EA",
"good": "#1E7A55",
"bad": "#C2306F",
"cobalt": "#2B4ACB"
},
"type": {
"kpi": "Schibsted Grotesk 30/34 800 -0.5",
"label": "Inter 12/16 600 +0.6 caps"
},
"parts": {
"metric": {
"params": {
"label": "",
"value": "",
"delta": "",
"tone": "@good",
"points": [0, 0]
},
"node": {
"column": [
{"label": "{label}", "color": "@muted"},
{"kpi": "{value}"},
{
"row": [
{"text": "{delta}", "font": "13/18 600", "color": "{tone}"},
{"space": "fill"},
{
"draw": [
{"poly": "{points}", "stroke": "{tone}", "weight": 2}
],
"size": [80, 28]
}
],
"width": "fill",
"align": "center"
}
],
"width": 220,
"padding": 16,
"gap": 6,
"fill": "#FFFFFF",
"stroke": "@line",
"cornerRadius": 14
}
}
}
},
"nodes": [
{
"name": "Metrics",
"gap": 12,
"color": "@ink",
"row": [
{
"metric": {
"label": "Traces today",
"value": "48,210",
"delta": "+12% vs Sat",
"points": [0, 22, 13, 18, 27, 20, 40, 12, 53, 14, 67, 8, 80, 4]
}
},
{
"metric": {
"label": "Error rate",
"value": "2.4%",
"delta": "+0.9 pts",
"tone": "@bad",
"points": [0, 20, 13, 21, 27, 18, 40, 16, 53, 10, 67, 9, 80, 3]
}
},
{
"metric": {
"label": "p95 latency",
"value": "812 ms",
"delta": "−40 ms",
"points": [0, 6, 13, 9, 27, 8, 40, 14, 53, 16, 67, 20, 80, 22]
}
}
]
}
]
}

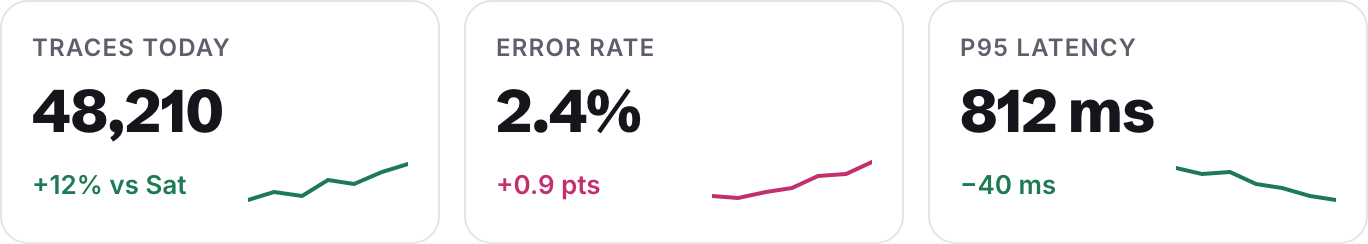

Three metric cards from one part. Each sparkline is a poly drawn in the part, with its points passed as a parameter.
Settings
{
"kit": {
"parts": {
"toggle": {
"params": {"on": "#2B4ACB", "at": "right"},
"node": {
"stack": [
{
"type": "rectangle",
"width": 44,
"height": 26,
"cornerRadius": 13,
"fill": "{on}"
},
{
"type": "ellipse",
"size": 20,
"fill": "#FFFFFF",
"at": ["{at}", 0, 0]
}
],
"width": 44,
"height": 26,
"padding": 3
}
},
"setting": {
"params": {"title": "", "detail": "", "control": {"toggle": {}}},
"node": {
"row": [
{
"column": [
{"text": "{title}", "font": "15/20 600"},
{"text": "{detail}", "color": "#5B606B"}
],
"width": "fill",
"gap": 2
},
"{control}"
],
"width": "fill",
"align": "center",
"gap": 16,
"padding": [14, 0]
}
}
}
},
"nodes": [
{
"name": "Settings",
"font": "Inter 14/20",
"color": "#14161B",
"width": 380,
"padding": [8, 20],
"fill": "#FFFFFF",
"cornerRadius": 16,
"column": [
{
"setting": {
"title": "Daily digest",
"detail": "Email and Slack at 09:00"
}
},
{
"setting": {
"title": "Only when something changed",
"detail": "Skip quiet days",
"control": {"toggle": {"on": "#C9CDD6", "at": "left"}}
}
},
{
"setting": {
"title": "Time zone",
"detail": "Asia/Kolkata",
"control": {
"row": [
{"text": "Change", "font": "14/20 600", "color": "#2B4ACB"}
]
}
}
}
]
}
]
}

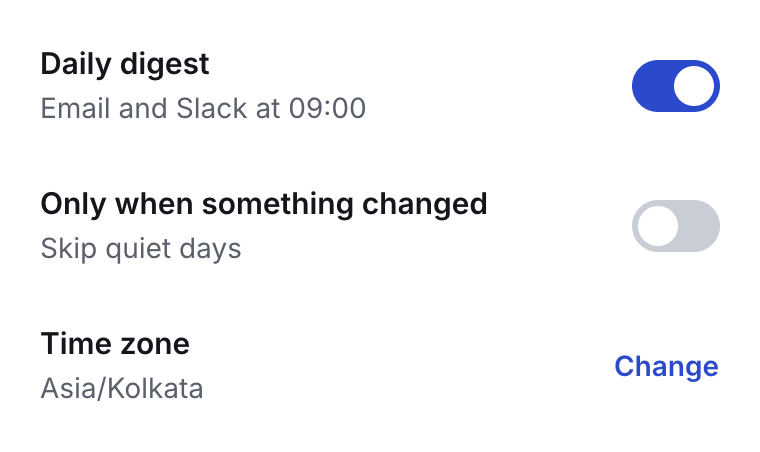

A settings list from two parts. The third row passes its own control in place of the toggle.
